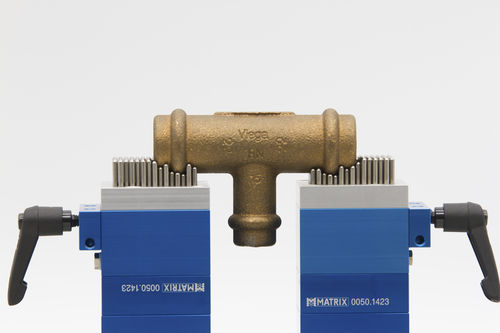

Mechanical clamping device X-SUPPORT XLworkpiecemachiningfor coordinate measuring machines
Add to favorites
Compare this product
Characteristics
- Type
- mechanical
- Applications
- workpiece, machining, for coordinate measuring machines
- Other characteristics
- compact, safety, modular
Description
ASSEMBLY AND METROLOGY
Workpiece-Support - X-SUPPORT XL (LIGHT)
The modular buidling kit X-SUPPORT XL with three or four pin-modules is a real specialist fixture for the support of medium-sized and large parts.
- Fast and safe hold for complex press and cast parts, metal or plastic
- Ideal for large car body parts in combination with the profile systems X-SHIFT and X-PROFILE
- especially designed for metrology and assembly
- combine this with MATRIX vacuum clamps
- options include plastic pin-tips for delicate surfaces, PEEK pins for CT analysis and a heavy-duty version with steel frame for heavy parts
