PCI Express Card M264 series

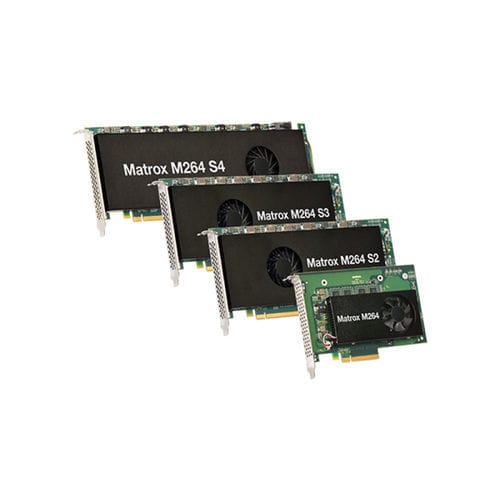

Matrox® M264 family of PCI Express® cards features hardware-based multi-channel 8- and 10-bit H.264 encoding, decoding and transcoding capabilities. They provide an instantaneous H.264-quality and density boost offering the pristine quality needed for broadcast contribution, production and distribution. With the capability for up to four channels of 4K XAVC encoding/decoding in a single-slot card, the M264 family enables OEMs to provide multi-channel 4K production servers in a PC platform. Supporting the H.264-based Sony® XAVC and Panasonic AVC-ULTRA mezzanine codecs, it makes live 4K production as easy as today’s XDCAM HD workflows in PC platforms. The M264 family can encode/decode up to four streams of 4Kp60 at 4:2:2 10-bit, 40 streams of HD Long GOP at 4:2:2 10-bit or 64 streams of HD at 4:2:0 8-bit. The faster than real-time encoding/decoding ability of the M264 allows multiple blazing fast transcodes for distribution on different media platforms. With onboard multi-channel, motion-adaptive deinterlacing, and up/down/cross scaling, the M264 family can repurpose content into any resolution before encoding or after decoding, particularly beneficial for over-the-top (OTT) workflows. Specifically designed for high-density encoding/decoding (Baseline Profile to High 10 Intra Profile up to Level 5.2), M264 cards provide the highest possible quality, with ultra-low power consumption, and in the smallest footprint. The M264 S4, S3, and S2 cards are cloud-friendly and their resources can be shared across virtual machines.
