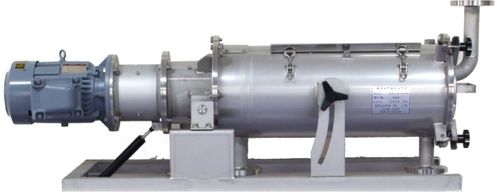

Sewage sludge screener S series

centrifugalscrewparticle

Slurry screener was developed for removing of coarse particles from slurry. The centrifugal force generated by a rotating screw is applied to the slurry, pressing particles against a filter screen. Particles are classified screen passages and screen residues. The rotating screw generates vibration on the filter screen, which prevents the mesh of the screen from being clogged by the particles. These features allow Slurry screener to achieve a sharp particle distribution of classified particles, and enable to remove coarse particles from the slurry. Solid-Liquid separation is also one of suitable applications of Slurry screener. ・Suitable for coarse particle removal and solid-liquid separation ・Clogging prevention by vibration of filter screen ・Classified particle size adjustable according to mesh opening size of screen ・Low noise operation ・Easy disassembling and cleaning 1. Solid separation from Food products Examples: Tomato juice, Almond milk, etc. 2. Classification of coarse particles from Chemical products Examples: Ceramic slurry, Battery material, Silicone resin, Paint, etc. 3. Solid separation from Wastewater
