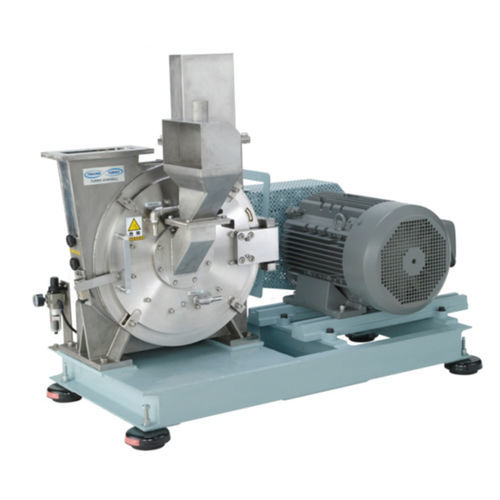

Disk mill TD series

for plastics

Turbo Disk Mill has a pair of grinding disks with edged radial grooves on inner sides. The material is fed through the inlet at the center of the fixed disk and towards the outlet discharged by the suction air-stream. Features 1)Low energy consumption Power consumption (kW/kg) is less than half compared with conventional mills. 2)The suitable particle size Product size can be controlled by adjustment of the gap between two disks. 3)Good particle shape An optional polisher removes whiskers from the pulverized material, thereby bulk density and fluidity become good. Applications polyethylene(HDPE, LDPE) vinyl chloride, polycarbonate nylon, polyester, ABS resins urethane, synthetic rubber resin thermoplastics resins
