Jet mill T series

high-speed

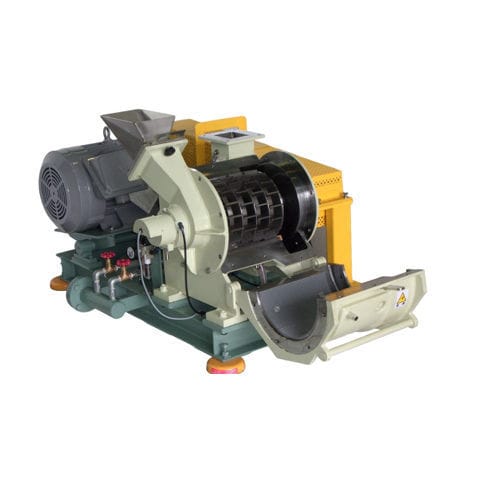

The Turbo Mill is a dry processing mill that goes a step beyond just impacting and shearing. It obtains your desired particle size by the impact from the high-speed rotation of blades and the high-speed vortex flow generated behind them. The Turbo Mill produces less fines than the jet mill resulting in a sharp particle size distribution, and it consumes less energy. A diverse lineup of models is available for just about any application and grinding particle diameter. Features 1.Simple and solid design with no internal screens makes maintenance easy and promises nearly permanent and trouble-free operation. 2.Because of high-speed rotation and the use of more rotor stages, it forms a smaller amount of fine powder compared to comparable products, ontaining a sharp particles size distribution. 3.Energy costs for the Turbo Mill is lower (1/3 to 1/2), and produce less fines than the jet mill pulverization. 4.Water-cooled rotor (direct cooled rotor) (CR type) is available for heat sensitive raw material (retrofit possible in the existing Turbo Mill). 5.Spherical ground products can be obtained especially for toner. ©Suction type blower ©Bag Filter ©Bag fine powder ©Rotary valve ©Cyclone ©Product ©Material ©Constant feeder ©Turbo Mill In général, Material is fed to the Turbo Mill quantitatively by an electromagnetic feeder or screw feeder. When synthetic resins with a low softening point or substances that generate significant heat during pulverization are used, the inside of the mill can be cooled with cold air to control the temperature exhaust air, This prevents fusion in the mill and enable continuous opération.
