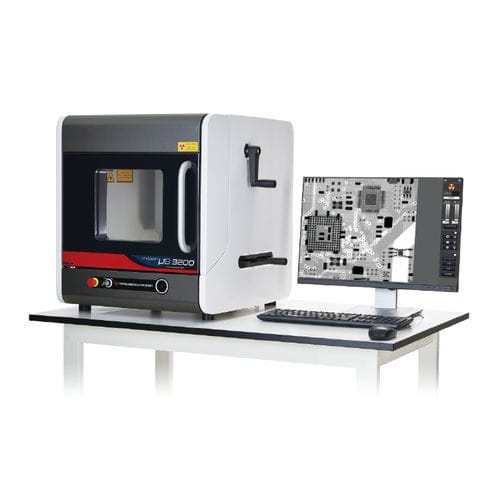

X-ray inspection system µB3200

manualmeasurementfor the electronics industry

is a benchtop entry-level X-ray inspection system. The compact X-ray inspection system fits directly on the desk to use it anywhere at small factories or offices. And, you can adjust the geometric magnification of the sample by raising or lowering the detector position. Size of Stage, Shooting Range by the Movement The "precision μB3200" is ideal for taking images of small circuit boards and small components. For example, the maximum monitor image magnification of 125 times, the inspection area is 2.5 × 2.8mm, and the applicable shooting range is 150 × 200mm. Point Using exquisitely created high voltage power supply New design for longer life Short FOD For the Safety The X-ray leakage measurement we offer is conducted from all directions of each unit to confirm that it is less than 1μSv/hr before delivery. X-Ray Shielding Technology To ensure safe and reliable installation, we have carefully designed radiation shielding. In general, lead used for shielding is a soft and easily deformed material, but by adopting a multi-layered structure combined with steel plates, it can be used for a long time without deformation of lead. It is the extremely low level that has no impact on the usage in daily lives.
