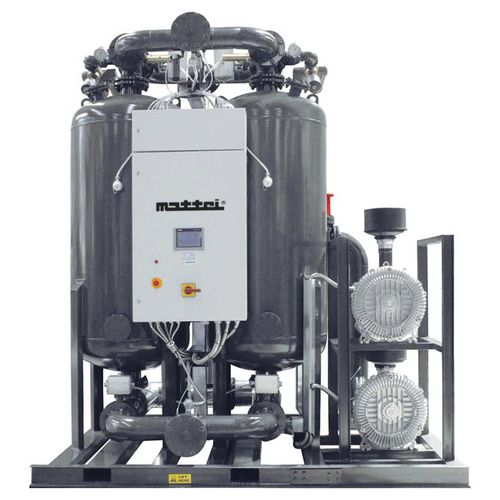

Adsorption with heat compressed air dryer DDH series
externally heated

Add to favorites

Compare this product

Go to the MATTEI website for more information

Characteristics

Technology

by adsorption with heat

Other characteristics

externally heated

Capacity

Max.: 180 m³/min
(6,356.64 ft³/min)

Min.: 14 m³/min
(494.41 ft³/min)

Working pressure

Max.: 10 bar
(145.04 psi)

Min.: 0 bar
(0 psi)

Motor power

Max.: 78.7 kW
(107 hp)

Min.: 9.4 kW
(12.78 hp)

Weight

Max.: 3,354 kg
(7,394.3 lb)

Min.: 264 kg
(582 lb)

Description

DDH range adsorption dryers hot-regenerate the adsorbing material through a high-efficiency heater and a centrifugal fan. The cutting-edge control system monitors the dew point and regulates regeneration, ensuring remarkable energy savings. Automatic Drying System The DDH range is equipped with a fully automatic drying system that uses a fan to draw in air from the environment and route it through the heater. This flow of hot air flows in the opposite direction with respect to the drying flow. Hot air exceeding 200°C regenerates the drying layer and removes humidity from it. Computerised Control The control system constantly monitors the dew point, displays operating status, alarms, pressure. It allows start-up and stop also remotely.
