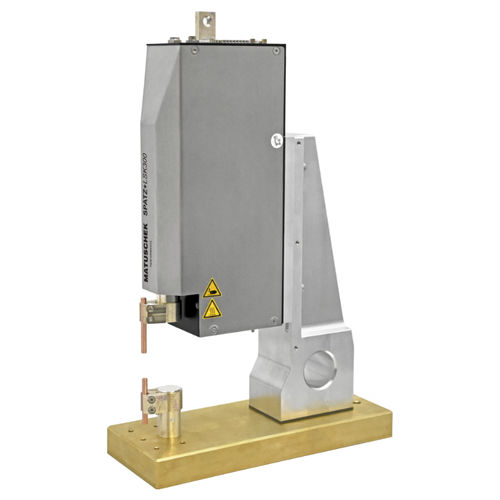

Servo-driven welding head SPATZ+LSK300resistancespotair-cooled
Add to favorites
Compare this product
Characteristics
- Technique
- resistance, spot, air-cooled
- Other characteristics
- automatic, high-precision, desk, servo-driven, for microjoining, precision metal joining
Description
SPATZ+LSK Servo Precision Weld Heads
SPATZ+LSK servo precision weld heads are designed for micro welding applications:
High-precision electromagnetic linear drive
Welding possible at any point within the travel range
Automatic referencing without additional mechanical fine adjustment
Precision path measuring system with component and electrode wear detection
Welding times adjustable in 0.1 ms steps
Penetration-controlled cut-off of the welding current, as well as holding the electrode position during the hold time possible
Operation with non-dangerous 24 V low voltage
SPATZ+LSK300
20 - 300 N
72 x 148 x 319 mm
(2.8 x 5.8 x 12.6 ")
10 kg (22 lbs)
