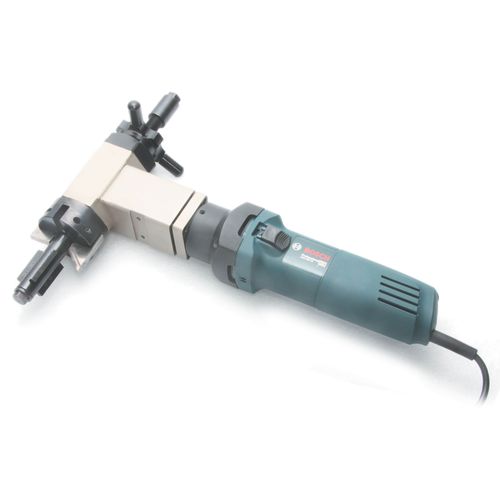

Electric beveling machine PBM-1625

pneumaticportablefor tubes

The PBM-1625 is a combination of power and range in a light and portable design. Rugged and balanced machine suitable for tubes and pipes in the size range of 20mm to 42mm ID (3/4” - 1.5/8”). FEATURES LIGHT WEIGHT BODY - High pressure cast aluminum body allows continuous operation under the harshest conditions. ROBUST TOOL HOLDER - Holds the cutting tool bits tightly at the desired position. Its robust construction and support to the cutting bits ensure vibration free performance. HIGH STRENGTH FEED SHAFT - Precise machined and hardened feed shaft provides a strong support to the assembly which slides over it. TOOL STEEL JAW - Wedge style hardened tool steel jaws for maximum life and secure positioning. Available within the locking range of 20mm to 42mm. CENTRAL MANDREL - Expanding mandrel allows fast, accurate and self-centering alignment with torque-free operation for operator safety. GEAR BOX - Highly accurately machined for positive power transmission with less noise and no wear and tear. BROACHED BUSH - Through hardened broached bush restricts the angular movement of the machine. PNEUMATIC OR ELECTRIC DRIVE - High quality pneumatic or electric drive for reliable service and long working life.
