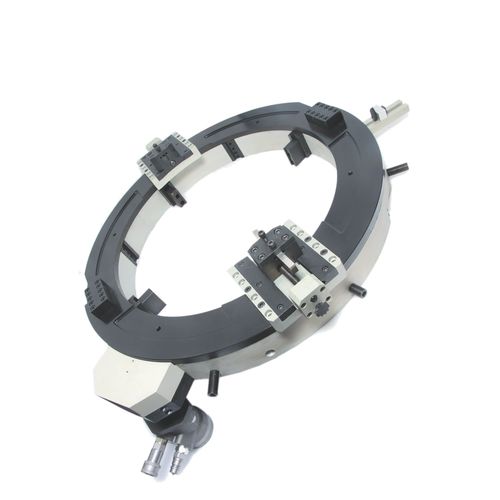

Externally mounted SFM-5460 is a split frame, clamshell type light and portable design. A rugged and slim machine suitable for tubes and pipes in the size range of 1371.6 mm to 1524 mm (54" - 60") in external diameter. It is a new generation heavy duty facing, bevelling and cutting machine designed for the Piping industry.
FEATURES
SPLIT FRAME MACHINE - It consists of a split mobile ring and fixed ring. Light weight, slim design.
JAWS - Wedge style hardened tool steel jaws for maximum life and secure positioning. 8 points of contact locking system. It provides stability and avoids vibration.
TRIP ASSEMBLY - It gives an auto feed to the tool bit assembly. Trip can be engaged or disengaged depending on feed required.
TOOL SLIDE - Holds the cutting tool bit assembly tightly at the desired position for the cutting and bevelling operation. Its robust construction and support to the cutting bits ensures vibration free performance.
PLANETARY GEAR BOX - It gives a high speed reduction with increasing torque.
PNEUMATIC, ELECTRIC OR HYDRAULIC DRIVE - High quality pneumatic, electric drive or hydraulic for reliable service and long working life.
