Scanning vibrometer ScanSet

laser Doppler

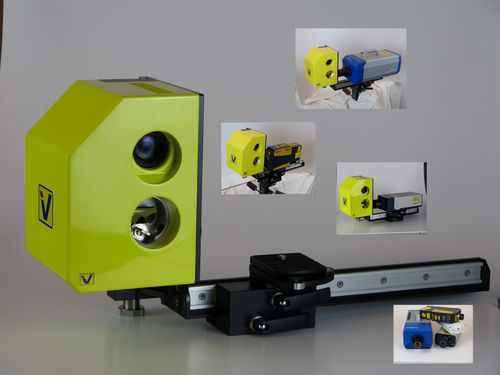

With the Scanning Laser Doppler Vibrometer, the laser beam is deflected using two computer-controlled mirrors. The measurement points are selected interactively on the video image of the measurement object. The vibration measurement is automatically carried out by the computer at the specified points. In contrast to complete systems, the newly developed ScanSet can be operated with different laser vibrometers. It turns a standard single-point laser vibrometer into a fully-fledged scanning laser vibrometer in just a few simple steps. To do this, the single point laser vibrometer is simply fixed using the quick-action clamping devices, the laser position is adjusted using the linear guides and the measurement can begin. The ScanSet has its own data acquisition with analog inputs for measuring the laser and reference signals. The user-friendly measurement and analysis software enables evaluation of the vibration data including graphical representation in the shortest possible time. Advantages & Innovation Pricing at less than 50%-80% of available scanning systems on the market Existing/Old SinglePoint Laser can be reused Works with all common Single Point Laser Doppler Vibrometers Direct interface/data transfer to the vModal software Operating deflection shape analysis in the time domain Inexpensive, fully-fledged SLDV Swiveling CDD camera User-friendly software Data acquisition can also be used as a simple FFT analyzer Mobile measuring system Use of different LDV depending on the application Generator output for controlling excitation systems (shaker) Hightech Innovation Made in Germany
