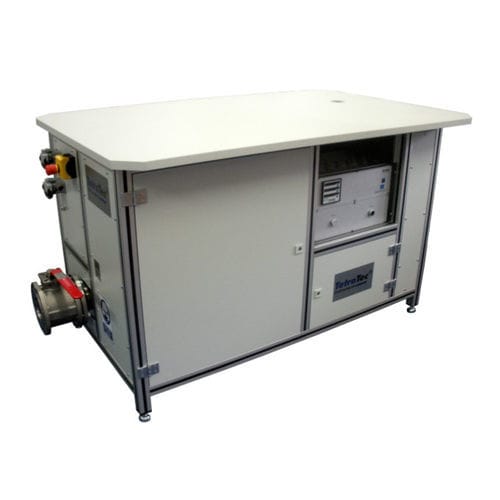

Air flow test stand ATS

automaticfor engine componentsfor the aeronautical industry

The measurement technique of air flow with sonic nozzles can be used to measure the mass flow through turbine blades, blast pipes or gas burners with very high accuracy. Our test stands are compact and include the sonic nozzles, the sensores and the PC for the automatic test control. Advantages & Innovation Automated test system for determining air mass flows Cost and time savings due to low personnel costs Scalable for different blade types and sizes through flexible nozzle register Scalable for different blade types and sizes through flexible nozzle register Accuracy +/- 0.5% of reading Standard measuring range 0.95 – 750 kg/h Automatic nozzle selection and pressure control Automatic detection of the calming vessels User-friendly software Project-oriented database structure One click reporting Relative pressue at test object: 1.1 to 1.5 Pabs, optional up to 3.5 x Pabs Export to Excel, ASCII, SAP Applications & Integrations Component testing of aircraft engines Component tests for gas and steam turbines, Turbine blades, compressor blades and vanes blade refurbishment Mass flow determination Verification of effective flow cross-sections Quality Control Series testing Research and Development
