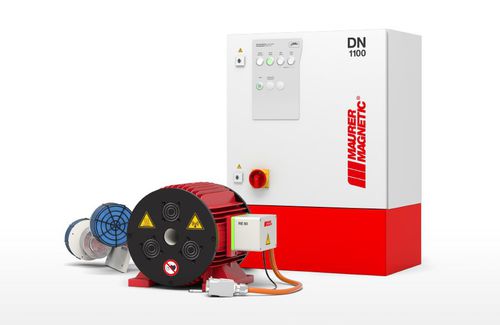

Tube demagnetizer RE + DN

> The special coil module generates extremely high field strengths in continuous operation > Optimized to demagnetize bars and tubes > The demagnetizing frequency is adjusted in the factory to the expected wall thicknesses of the parts and to the conveying speed > The coil module generates a high magnetic field strength even at a higher demagnetizing frequency > A high demagnetization performance is achieved from the forced coil cooling at 100% switch-on time > Field strengths exceeding 190 kA/m are reached using pulse demagnetizing > The coil is housed in a rugged cast metal enclosure, which largely shields the stray fields Series RE demagnetizers combine new technologies and a rugged design with maximum performance and cost-effectiveness. As compared to conventional continuous flow systems, which typically reach a field strength of 10 – 30 kA/m, the RE demagnetizing coils reach values of 60 – 90 kA/m. This corresponds to up to 10 times higher performance. Coils designed for continuous operation are especially well suited to efficiently demagnetize large volumes of rods or tubing material. Furthermore, the Maurer Degaussing® power modules also allow a pulse demagnetization capable of reaching field strengths that exceed 190 kA/m. Materials of different diameters can be successfully demagnetized without having to adjust process parameters and without any performance loss. Integration into automated production systems is extremely easy thanks to the standard control interfaces.
