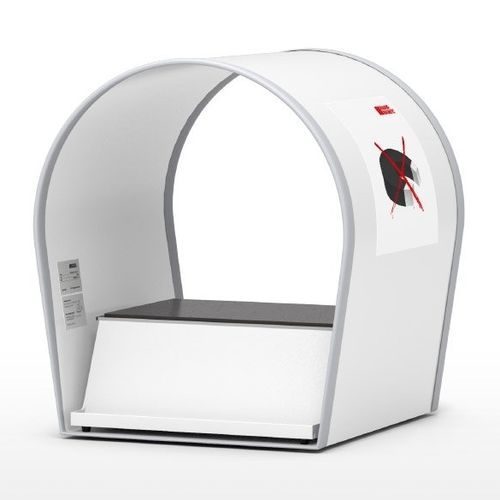

Zero-gauss chamber NGK series

Ambient magnetic field shielding > Measuring point for reproducible and location-independent measuring results used for quality assurance, such as for cross-operational supply chains > Measurements of residual magnetism on ferromagnetic parts are no longer significantly distorted by the ambient magnetic fields > Passive shielding, no power consumption and maintenance-free > Defined measuring point, good access to the measuring room > Rugged platform design For location-independent reproducible measurement values Measurements of residual magnetism on ferromagnetic parts in the range < 4 A/cm (~ 5 gauss) are typically significantly influenced by the induced earth’s magnetic field. Due to the geometry and permeability of the material, induced magnetic fields can be amplified several times over. Depending of the slim, elongated parts in the earth’s magnetic field (e.g. 0.4 A/cm), the measurement results may fluctuate by up to 4 A/cm at the same measuring point. Component measurements inside the zero gauss chamber can be repeated at any location, allowing a global quality assurance between customers and suppliers.
