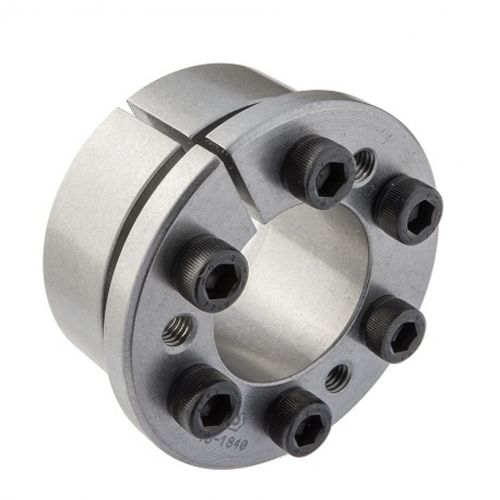

Rigid coupling MAV 1061 expandible axleself-centeringflange
Add to favorites
Compare this product
Characteristics
- Type
- rigid, expandible axle
- Construction
- self-centering
- Installation system
- flange
- Torque
Max.: 378,000 Nm
(278,798.4924 ft.lb)Min.: 68 Nm
(50.1542 ft.lb)
Description
medium capacity
self-centering, self-locking
fixed axial hub position during tightening
single taper design
tolerances: shaft h8; hub bore H8
surface finish of shaft and hub bore Ra < 3.2 μm
Composition
slotted inner ring, with integrated push-off threads
slotted outer ring
set of socket head cap screws, grade 12.9
Catalogs
MAV - standard series
36 Pages
MAV 1261
1 Pages
