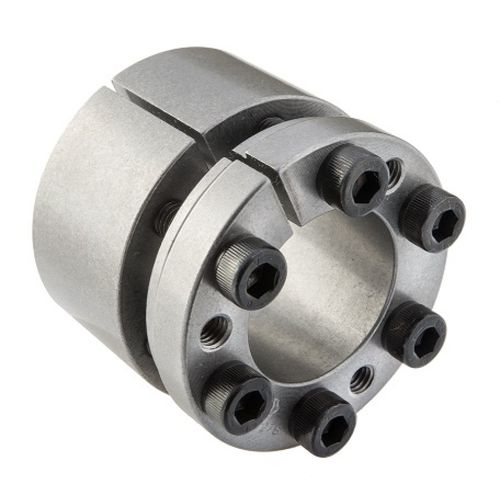

Rigid coupling MAV 6901 expandible axleshaftself-centering
Add to favorites
Compare this product
Characteristics
- Type
- rigid, expandible axle
- Product applications
- shaft
- Construction
- self-centering
- Installation system
- flange
- Torque
Min.: 510 Nm
(376.1567 ft.lb)Max.: 647,000 Nm
(477,202.7106 ft.lb)
Description
medium capacity
self-centering, self-locking
single taper design
high contact length, low contact pressures
tolerances: shaft h8; hub bore H8
surface finish of shaft and hub bore Ra<3.2 µm
Composition
slotted inner ring, with integrated push-off threads
slotted outer ring
set of socket head cap screws, grade 12.9
