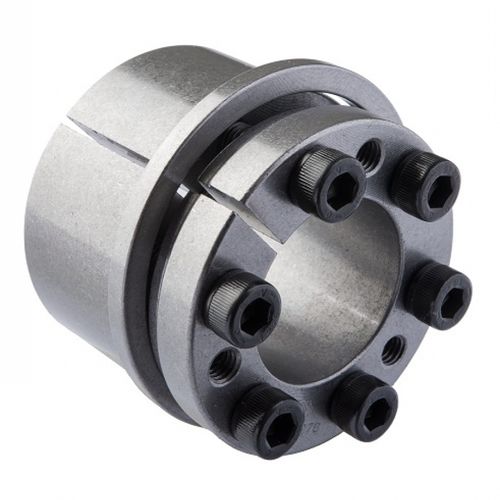

Rigid coupling MAV 6902 expandible axleshaftself-centering
Add to favorites
Compare this product
Characteristics
- Type
- rigid, expandible axle
- Product applications
- shaft
- Construction
- self-centering
- Installation system
- flange
- Torque
Max.: 398,000 Nm
(293,549.7354 ft.lb)Min.: 310 Nm
(228.6443 ft.lb)
Description
medium capacity
self-centering, self-locking
fixed axial hub position during tightening
single taper design
high contact length, low contact pressures
tolerances: shaft h8; hub bore H8
surface finish of shaft and hub bore R a < 3.2 µm
Composition
slotted inner ring, with integrated push-off threads
slotted outer ring
spacer
set of socket head cap screws, grade 12.9
Catalogs
MAV - standard series
36 Pages
MV 6902
1 Pages
