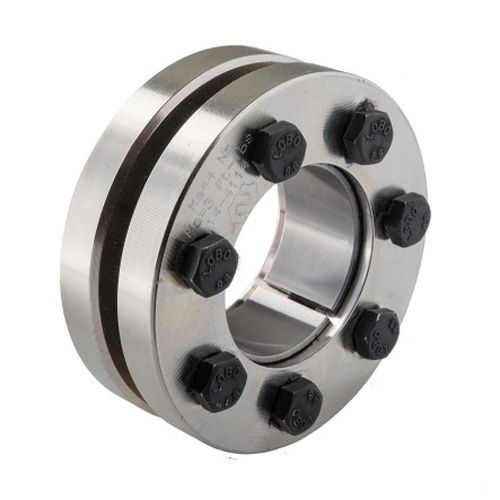

Rigid coupling MAV 2208 shaftdouble shrink discdry
Add to favorites
Compare this product
Characteristics
- Type
- rigid
- Product applications
- shaft
- Construction
- double shrink disc
- Other characteristics
- dry
- Installation system
- flange
- Torque
Min.: 1,210 Nm
(892.4502 ft.lb)Max.: 2,140,000 Nm
(1,578,382.9995 ft.lb)
Description
external locking device for hollow shaft (hub) – shaft connection
three-part design
self-releasing tapers, greased with MoS2 (μ = 0.05)
screws greased with MoS2 (μ = 0.10)
zinc plated outer rings
O-Ring between outer rings from size d = 140 mm and above
MAV 2208: heavy series, high capacity
tolerance of hub outer diameter: h8
surface finish of shaft and hub Ra < 3.2 μm
shaft – hub bore contact surface grease-free and dry (μ = 0.15)
Composition
slotted inner ring
front outer ring
rear outer ring
set of hexagonal head cap screws, grade 10.9 (size < M6 of grade 8.8)
