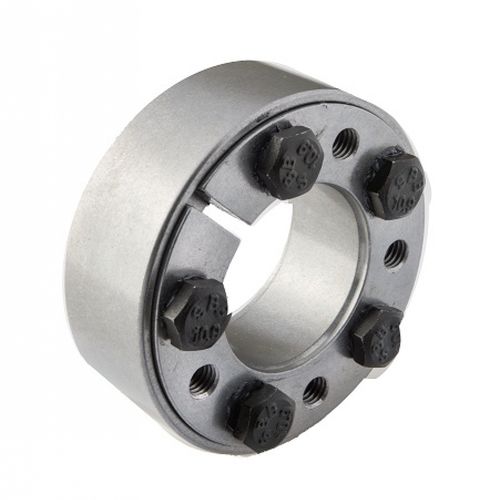

Rigid coupling MAV 3008 shaftsingle shrink discdry
Add to favorites
Compare this product
Characteristics
- Type
- rigid
- Product applications
- shaft
- Construction
- single shrink disc
- Other characteristics
- dry
- Installation system
- flange
- Torque
Max.: 2,884,000 Nm
(2,127,129.2385 ft.lb)Min.: 21 Nm
(15.4888 ft.lb)
Description
external locking device for hollow shaft (hub) – shaft connection
two-part design
self-releasing tapers, greased with MoS2 (μ = 0.05). Series MAV 3008 – MAV 3009 feature oiled tapers (self-locking) up to size 68×115
screws greased with MoS2 (μ = 0.10)
MAV 3008 – MAV 3009: standard series, medium capacity
tolerance of hub outer diameter: h8
surface finish of shaft and hub Ra < 3.2 μm
shaft – hub bore contact surface grease-free and dry (μ = 0.15)
Composition
slotted inner ring, with integrated push-off threads
outer ring
set of hexagonal head cap screws, grade 10.9 (size < M6 of grade 8.8) for series MAV 3008 – MAV 3108 – MAV 3208; grade 12.9 for series MAV 3009 – MAV 3209
hardened washers DIN 6916 for units with screw size ≥ M16
