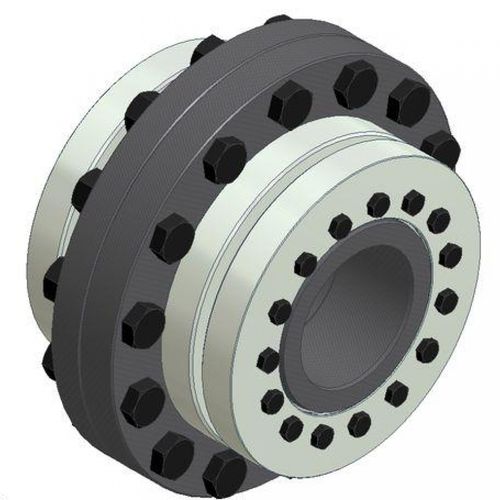

Rigid coupling MAV FC2008 shaftsflangedry
Add to favorites
Compare this product
Characteristics
- Type
- rigid
- Product applications
- shafts, flange
- Other characteristics
- dry
- Installation system
- flange
- Torque
Max.: 632,000 Nm
(466,139.2783 ft.lb)Min.: 7,600 Nm
(5,605.4723 ft.lb)
Description
rigid shaft-to-shaft coupling with flanges and shrink discs MAV 2008
medium capacity
suitable for connection of medium – large diameter shafts
decoupling of shafts requires only few millimeters of axial room
connection of shafts with different diameters is possible
shafts tolerance: see table for shrink discs
shafts surface finish Ra < 3.2 μm
shafts – flange bores contact surfaces: grease-free and dry (μ = 0.15)
Composition
two shrink discs MAV 2008
male coupling flange
female coupling flange
set of hexagonal head cap screws, grade 10.9
set of hexagonal nuts, grade 10
