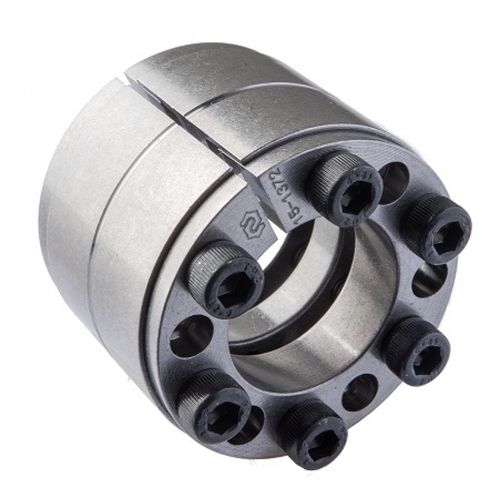

Rigid coupling MAV 4061 expandible axleshaftself-centering
Add to favorites
Compare this product
Characteristics
- Type
- rigid, expandible axle
- Product applications
- shaft
- Construction
- self-centering
- Installation system
- flange
- Torque
Max.: 22,100 Nm
(16,300.1235 ft.lb)Min.: 420 Nm
(309.7761 ft.lb)
Description
high capacity
self-centering, self-locking
two thrust rings with single taper design
tolerances: shaft h8; hub bore H8
surface finish of shaft and hub bore Ra < 3.2 µm
Composition
slotted front thrust ring with integrated push-off holes
slotted rear thrust ring
slotted outer ring with integrated push-off threads
set of socket head cap screws, grade A4-80
