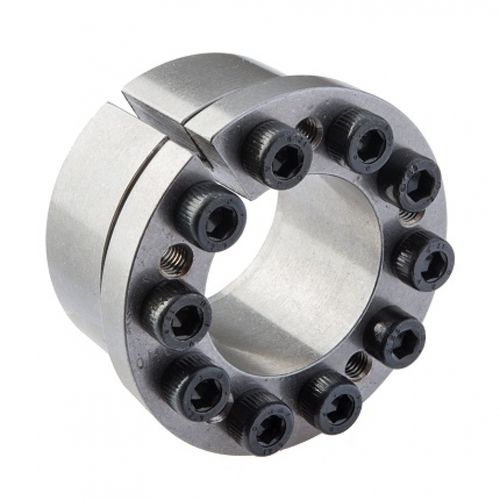

Rigid coupling MAV 2061 expandible axleshaftshaft-hub
Add to favorites
Compare this product
Characteristics
- Type
- rigid, expandible axle
- Product applications
- shaft
- Construction
- shaft-hub, self-centering
- Other characteristics
- torque
- Installation system
- flange
- Torque
Max.: 684 Nm
(504.4925 ft.lb)Min.: 22 Nm
(16.2264 ft.lb)
Description
shaft-hub locking device with medium to hihg torque capacity
single taper design, self-centering, self-locking
general purpose unit, particularly recommended for servo-and-stepping-motors
no axial movement of hub during installation
good bending moment capacity
shaft tolerance h7-h11; hub bore tolerance H7-H11
shaft and hub bore surface finish Ra< 3,2 um
Composition
slotted inner ring, with intergrated push-off threads
slotted outer ring
set of socket head cap screw, grade 12.9
