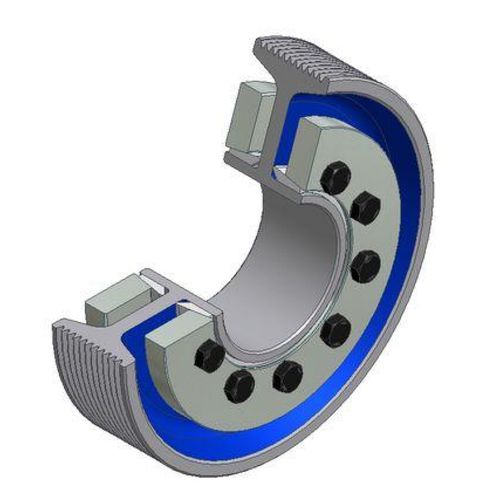

Rigid coupling MAV 2008 seriesshaftdouble shrink discdry
Add to favorites
Compare this product
Characteristics
- Type
- rigid
- Product applications
- shaft
- Construction
- double shrink disc
- Other characteristics
- dry
- Installation system
- flange
- Torque
Max.: 1,800,000 Nm
(1,327,611.8687 ft.lb)Min.: 38 Nm
(28.0274 ft.lb)
Description
external locking device for hollow shaft (hub) – shaft connection
self-releasing tapers, greased with MoS2 (μ = 0.05)
screws shall be greased with MoS2 (μ = 0.10)
zinc plated outer rings
O-Ring between outer rings from size d = 140 mm and above
MAV 2008: standard series, medium capacity
in HALF HC and HT versions, performances are reduced of 50%
tolerance of hub outer diameter: h8
surface finish of shaft and hub Ra < 3.2 μm
shaft – hub bore contact surface grease-free and dry (μ = 0.15)
Composition
slotted inner ring split (qty 2 in split, qty 1 in HC and HT)
front outer ring (split, HC)
rear outer ring (split, HT)
screws are supplied separately upon request
