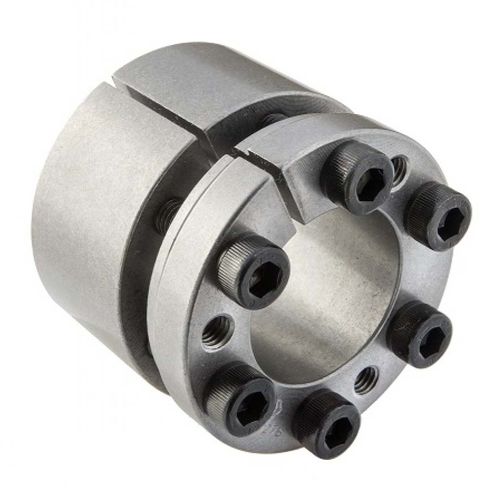

Rigid coupling MAV 6901 shaftself-centeringtorque
Add to favorites
Compare this product
Characteristics
- Type
- rigid
- Product applications
- shaft
- Construction
- self-centering
- Other characteristics
- torque
- Torque
Max.: 15,520 Nm
(11,446.9646 ft.lb)Min.: 290 Nm
(213.893 ft.lb)
Description
self-centering, self-locking
single taper design
fitting length larger than MAV 1062
lubrication: food grade oil FDA approved class H-1
tolerances: shaft h8; hub bore H8
shaft and hub bore surface finish 0.8 ≤ Ra ≤ 3.2 μm
Composition
slotted inner ring with integrated push-off tapped holes
slotted outer ring
set of socket head cap screws, grade A4-80
