Pneumatic valve actuator HD series90°Scotch yokedouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Movement
- 90°
- Technology
- Scotch yoke
- Configuration
- double-acting
- Norms
- ISO
- Other characteristics
- NAMUR, for high-torque applications
- Torque
112,984 Nm, 225,969 Nm
(83,332.72 ft.lb, 166,666.18 ft.lb)- Pressure
1,000 psi
- Ambient temperature
Max.: 176 °F
(80 °C)Min.: -4 °F
(-20 °C)- Rotation angle
90 °
Description

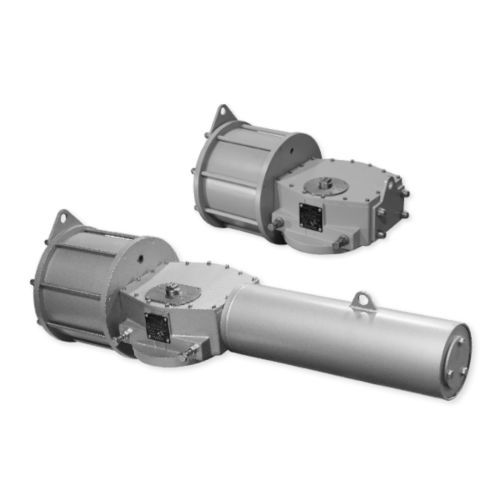

Max-Air Technology Heavy Duty Series (HD) Scotch Yoke Actuators are available in two distinct configurations: SHD (symmetric) and CHD (canted) heavy duty selectable torque profiles are designed to perform in the most demanding applications based on valve requirement. Engineered to pneumatically automate all types of quarter turn valves (ball, butterfly, plug, damper), where reliably high torque outputs are necessary. Double Acting 13,367 to 2,738,990 in-lbs, Spring Return 5,328 to 1,320,215 in-lbs. Please refer to torque charts for specific details.
