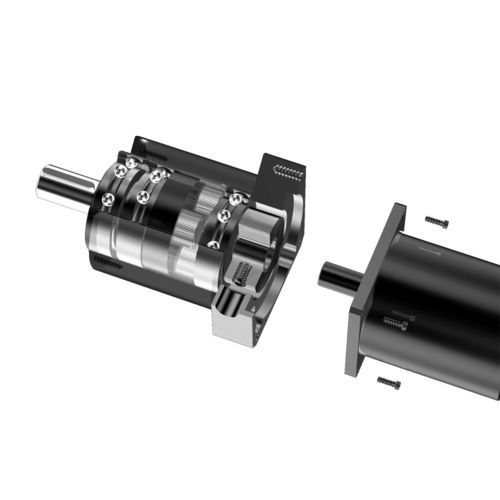

Planetary gear reducer MPG pluscoaxialsolid-shaft200 - 500 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 20 - 50 Nm, 50 - 100 Nm, 10 - 20 Nm
- Number of stages
- two-stage
- Performance
- maintenance-free
- Applications
- drive, shaft
- Rotational speed
Max.: 6,000 rpm
(37,699.11 rad.min-1)Min.: 450 rpm
(2,827.43 rad.min-1)- Backlash
Max.: 0.16 °
Min.: 0 °
- Gear ratio
Max.: 100 unit
Min.: 3 unit
Description
We supply the suitable gear box for your motor; just use your servomotor.
max® planetary gear units
We can supply you with German branded gear boxes which can be fitted to almost all motors without any problems thanks to available adapter parts.
The connection between the motor shaft and the gear box drive shaft is made via a clamping hub. The clamping screw in the clamping hub is tightened through the mounting hole in the adapter plate.
The advantages are obvious:
• 3-fold EMERGENCY STOP torque
• service life 20,000 h
• low torsional backlash
• high efficiency
• suitable for cyclic and continuous operation
• axial length compensation
• suitable for all mounting positions
• maintenance-free due to lifetime lubrication
• easy mounting of servo and IEC motors due to clamping ring technology
Catalogs
Catalogue
37 Pages
