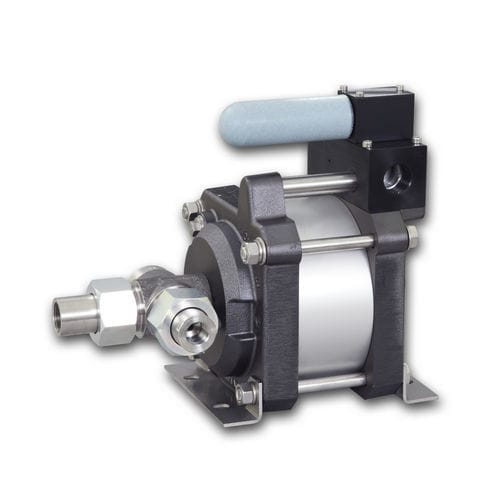

Piston pump G35waterair-drivenstationary
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Fluid
- water
- Operation
- air-driven
- Mobility
- stationary
- Domain
- industrial
- Applications
- high-pressure, for control
- Material
- stainless steel
- Other characteristics
- single-acting
- Flow
5.02 l/min
(1.32614 us gal/min)- Pressure
Max.: 10 bar
(145.038 psi)Min.: 1 bar
(14.504 psi)- Fluid temperature
60 °C
(140 °F)- Width
272 mm
(10.71 in)- Height
296 mm
(11.65 in)- Weight
14.5 kg
(31.97 lb)
Description
Air control units with filter pressure regulator, control pressure gauge and shut off valve: G35(L) with C2
To protect the pump against excessive outlet pressures or to limit the outlet pressure, a safety valve can be fitted to the air control unit in the air drive line. G35(L) with C2/SV-air (The
required outlet pressure has to be indicated.)
