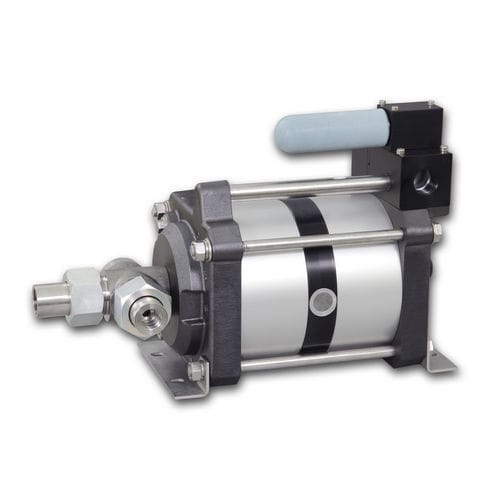

Piston pump G35-2waterair-drivenstationary
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Fluid
- water
- Operation
- air-driven
- Mobility
- stationary
- Domain
- industrial
- Applications
- high-pressure, for control
- Other characteristics
- single-acting
- Flow
4.3 l/min
(1.13594 us gal/min)- Pressure
Min.: 1 bar
(14.504 psi)Max.: 10 bar
(145.038 psi)- Fluid temperature
60 °C
(140 °F)- Length
396 cm
(156 in)- Width
272 cm
(107.09 in)- Height
211 cm
(83.07 in)- Weight
19 kg
(41.89 lb)
Description
Air control units with filter pressure regulator, control pressure gauge and shut off valve: 35-2(L) with C2
To protect the pump against excessive outlet pressures or to limit the outlet pressure, a safety valve can be fitted to the air control unit in the air drive line. G35-2(L) with C2/SV-air (The
required outlet pressure has to be indicated.)
