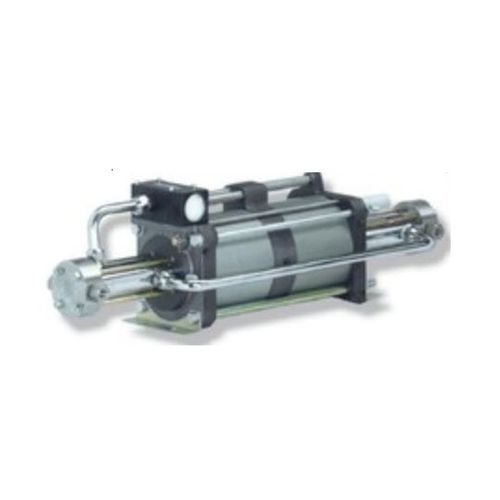

Piston pressure booster DLE 2-2

gasnitrogenoxygen

Pressure ratio - 1:4 Displacement volume (cm³) - 1.844,00 Displacement volume (in³) - 112,53 Gas Inlet Pressure pA max. (bar) - 40 Gas Inlet Pressure pA max. (psi) - 580 Formula to calculate gas outlet pressure pB - 4*pL+pA Max. permitted outlet pressure (psi) - 580 Air Drive Pressure min. (bar) - 1 Air Drive Pressure min. (psi) - 14.5 Air Drive Pressure max. (bar) - 10 Air Drive Pressure max. (psi) - 145 Weight (kg) - 25,00 Inlet (in) - 1/2 Outlet (in) - 1/2 Drive Air (in) - 3/4 Operating Temperature max. (°C) - 60 Height (mm) - 273,00 Depth (mm) - 181,00 Width (mm) - 773,00 Material of gas section - Stainless steel/aluminium Gas Boosters The MAXIMATOR high pressure boosters are suitable for the oil free compression of gases and air. Industrial gases like Argon, Helium, Hydrogen and Nitrogen can be compressed to operating pressures of 2,100 bar (30,000 psi), Oxygen to 350 bar (5,075 psi). The MAXIMATOR high pressure boosters are suitable for the oil free compression of gases and air. Industrial gases like Argon, Helium, Hydrogen and Nitrogen can be compressed to operating pressures of 2,400 bar (36,000 psi), Oxygen to 350 bar (5,075 psi). Air driven boosters are an efficient alternative instead of electrically driven products and can be used in explosionproof areas .
