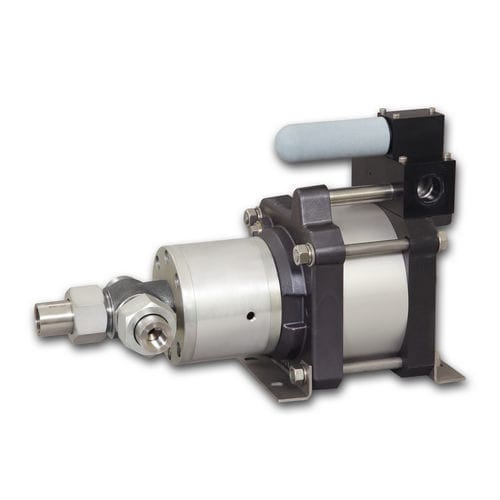

Piston pump GSF15waterair-drivenstationary
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Fluid
- water
- Operation
- air-driven
- Mobility
- stationary
- Domain
- industrial, chemical
- Applications
- high-pressure, discharge, for control
- Material
- stainless steel, PTFE
- Other characteristics
- rugged, single-acting, with filter
- Flow
12.86 l/min
(3.39725 us gal/min)- Pressure
Max.: 160 bar
(2,320.604 psi)Min.: 0 bar
(0 psi)- Fluid temperature
60 °C
(140 °F)- Length
411 cm
(162 in)- Width
272 cm
(107.09 in)- Height
191 cm
(75.2 in)- Weight
20 kg
(44.09 lb)
Description
Air control units with filter pressure regulator, control pressure gauge and shut off valve: GSF15(L) with C2
To protect the pump against excessive outlet pressures or to limit the outlet pressure, a safety valve can be fitted to the air control unit in the air drive line. GSF15(L) with C2/SV-air (The
required outlet pressure has to be indicated.)
