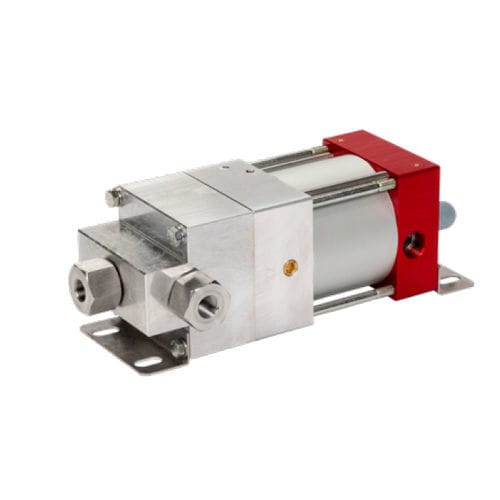

Gas pump MLGP 7-NBR

electriccentrifugalstationary

Single-acting With one air drive piston Operating pressures of up to 70 bar (1.015 psi) The compact and robust pumps of the MLGP series are available in a wide range of options to compress a broad spectrum of refrigerants. Material: Pump heads made of aluminium, Pistons and valves made of stainless steel and NBR Sealing in standard Standard models with bottom inlet Suitable for air drive pressures from 1 to 10 bar (14.5 to 145 psi) Options for MLGP Seal version, e.g. FKM, HNBR, EPDM, CR for special fluids, Order code: see media compatibility guide Special connections, e.g. with NPT thread, Order code: MLGP7 - NPT FEC-Option for dry compressed air or nitrogen drive, Order code: MLGP7 - FEC LT-Option: Low-temperature modification for the high pressure section (-40°C up to 60°C), Order code: MLGP7 - LT LTA-Option: Low-temperature modification for the high pressure and air drive section (-40°C bis 60°C), Order code: MLGP7 - LTA Other options available on request.
