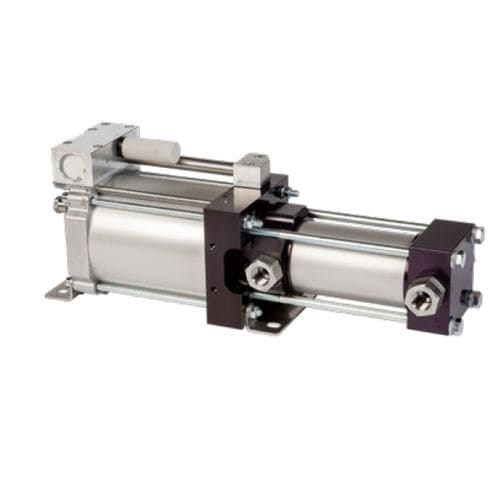

Pneumatic-drive pump SLGP series

pistonstationaryindustrial

Double-acting Single and two stage With one air drive piston Operating pressures of up to 52 bar (755 psi) The compact and robust pumps of the SLGP series are available in a wide range of options to compress a broad spectrum of refrigerants. Material: Pump heads made of aluminium, Pistons and valves made of stainless steel and NBR Sealing in standard Standard models with bottom inlet Suitable for air drive pressures from 1 to 10 bar (14.5 to 145 psi) Options for SLGP Seal version, e.g. FKM, HNBR, EPDM, CR for special fluids, Order code: see media compatibility guide Special connections, e.g. with NPT thread, Order code: SLGP 3 - NPT FEC-Option for dry compressed air or nitrogen drive, Order code: SLGP 3 - FEC LT-Option: Low-temperature modification for the high pressure section (-40°C up to 60°C), Order code: SLGP 3 - LT LTA-Option: Low-temperature modification for the high pressure and air drive section (-40°C bis 60°C), Order code: SLGP 3 - LTA Other options available on request.
