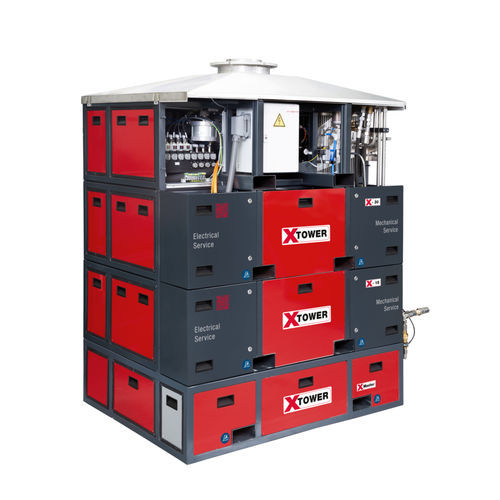

Gas compressor unit X-TOWER

pistonair-cooledstationary

A standard configuration up to 900 bar consists of one MASTER-Module (control module) and up to three X-Modules (gas booster modules) - first stage module up to 270 bar, second stage module up to 540 bar and the final stage module up to 900 bar. This configuration will provide a gas outlet flow of 10 kg Hydrogen per hour. For higher outlet capacities more modules can be connected easily. For lower inlet pressure (e.g. electrolyser) X-Modules are also available. Please get in touch with us for your detailed X-Tower configuration. The gas compression is realized with our new EHB-Series booster technology (Electro-Hydraulic-Booster) and provides unrevealed efficiency due to their completely redesigned electrohydraulic drive concept. For all applications the MASTER-Module is mandatory and is handling safety and functional features for maximum three X-Modules. The X-Modules can be combined and connected depending on the application. FLEXIBILITY With the X-TOWER you are planning the future. Our solution can be adapted to new challenges by changing, adding orremoving X-Modules. The modular design allows many combinations of X-Modules to cover many different application and requirements. EFFICIENCY With the new frequency converter controlled complete closed hydraulic drive concept of our EHB-Series we are providing the most efficient way to compress gases. Efficient hydraulic drive with less oil volume Flushing concept integrated Quite drive technology Power consumption monitoring COOLING Intelligent and efficient new cooling concept keep the gas temperature, the EHB and the electrical enclosures under control with minimum energy consumption.
