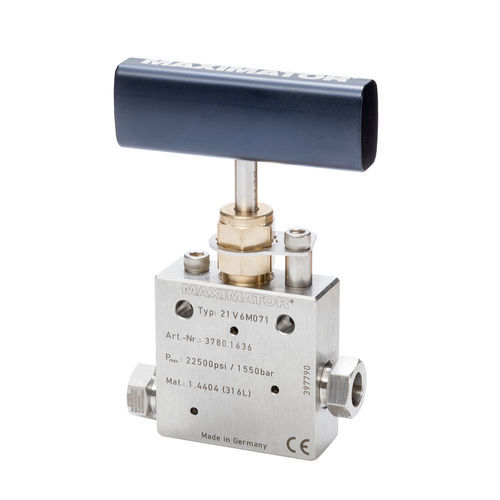

Needle valve 21V series

manualregulatingfor gas

MAXIMATOR valves of the 21V series have a cold-machined stainless steel body. Valve bodies are available in six different designs and can be equipped with regulating stem. A special feature is the non-rotating stem which ensures a long life and thus a high reliability of the valve. MAXIMATOR valves of the 21V series have a cold-machined stainless steel body. Valve bodies are available in six different designs and can be equipped with regulating stem. A special feature is the non-rotating stem which ensures a long life and thus a high reliability of the valve. These MAXIMATOR high pressure valves with metal sealing have a high level of safety and reliability under adverse operating conditions. These valves may be employed both with gases and all fluids. Their traceability is ensured through extensively documented data (batch number, max. pressure, material number, type designation). Each high pressure valve of the MAXIMATOR series is completely equipped with gland and collar. Special features High-quality valve body – 1.4404 (316 L) Relief bore for absolute safety Six different valve designs Non-rotating stem Special designs Elongation for valve handles Extreme temperatures Special materials
