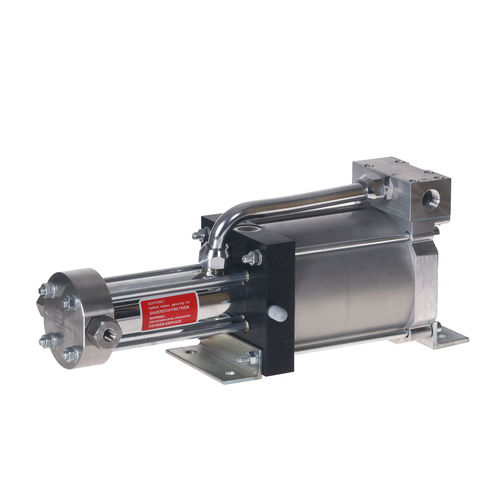

Oxygen mini booster SDLE 20
oil-free

Oxygen mini booster - SDLE 20 - Maximator GmbH - oil-free
Oxygen mini booster - SDLE 20 - Maximator GmbH - oil-free
Add to favorites
Compare this product


Characteristics

Media
oxygen
Lubrication
oil-free
Pressure

Max.: 200 bar
(2,900.8 psi)

Min.: 0 bar
(0 psi)

Description

Rebreather Oxygen Booster - SDLE 20 This booster is well approved in continuous industrial applications. Designed for professional equipment and continous duty this booster is relatable and used in various applications. Because of big volume per stroke the compression of gas requires only a few strokes. Technical data SDLE 20: Average flow: 185 NL/min * Drive source: Oilfree compressed air 1-10 bar Pressure ratio: 1:20 Volume per stroke: 60 cm³ Temperature max.: 100°C Weight: 20 Kg Dimensions (H x D x W): 175mm x 439mm x 135mm * The flow is depending on air drive and inlet pressure
