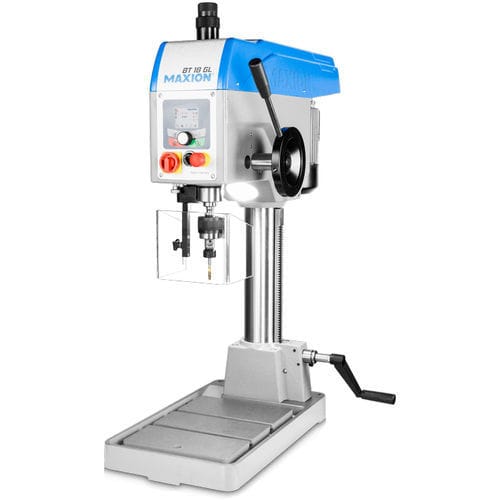

Vertical tapping machine BT 18 GL
electric

Vertical tapping machine - BT 18 GL - MAXION Jänsch & Ortlepp GmbH - electric
Vertical tapping machine - BT 18 GL - MAXION Jänsch & Ortlepp GmbH - electric
Vertical tapping machine - BT 18 GL - MAXION Jänsch & Ortlepp GmbH - electric - image - 2
Vertical tapping machine - BT 18 GL - MAXION Jänsch & Ortlepp GmbH - electric - image - 3
Add to favorites
Compare this product


Characteristics

Type
vertical
Operation
electric

Description

High performance tapping machine with lead screw. Safety arrangement for prevention of tool breakage. Programme for tapping single and continous cycles, programmable tapping depth, piece counter, LED machine light and electronically controlled motor braking for single cycle operation. Simple replacement of lead screw by means of quick coupling. For manufacture of threads true to gauge M3 – M10 Serial production Reliable and smooth running Standard and special thread sizes - Transmission Technical data is modified as follows: Stronger motor 0,75 kW Tapping capacity M3 - M16 main rpm steps 160 - 280 - 500 - 800 U/min further rpm steps after change of belt position 210, 360, 620, 1000, 1600, 3000 U/min
