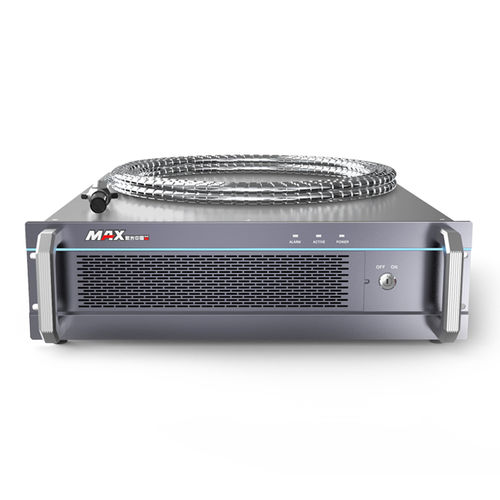

Fiber laser MFSQ-150/1500W

pulsedquasi-continuous wavered

Product Description The product has various compatibility and control modes, which can switch between pulse and continuous mode, and simultaneously handle the.processing tasks of two different lasers The pulse width waveform is flexible and adjustable, the heat dissipation isfast, and the electro-optical conversion rate is over 30%, which is another option for the long pulse width , high peak power applications. Main Feature: 1. High beam quality; 2. Alternative lamp pump lasers; 3. High photoelectric conversion efficiency; 4. Pulse and continuous working modes; 5. High pulse power, stable power, and high peak power Model : MFSQ-150/1500W OPTICAL SPECIFICATIONS CW Mode Max Power : 250W Pulsed Mode Max Power : 1500W Mode of Operation : CW/Modulated Polarization : Random Power Tunability : 10 to 100% Wavelength : 1080 ± 10 nm Power Stability : 2% Laser Beam Quality M² : 1.3(20um) Pulse Energy : 15 J Pulse Duration : 0.1~50 ms Repetition Rate : 1~5000 Hz Preview Red Light Power : 100 μW FIBER DELIVERY SYSTEM Interface : QBH (LOC) Length : 10 m standard, other lengths optional Diameter : 20/50 μm Bending Radius : 200 mm ELECTRICAL RATINGS Supply Voltage : 220VAC Rated Power : 3 KW OTHER SPECIFICATIONS Operating Temperature : +10 to +40℃ Storage Temperature : -10 to +60℃ Humidity : 10 to 85% Cooling Method : Air Cooling Dimension : 586×420×142 mm Weight : 34 kg
