Air filter M-WASH

panelduststainless steel

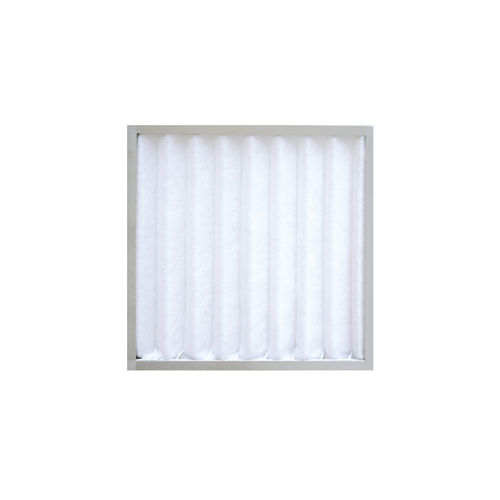

WASHABLE PANEL FILTER PRODUCT HIGHLIGHT: Removable outer frame design High dust loading capacity Superior washable media(wash 2-3 times as recommended) Efficiency：G2/G3/G4/F5 High quality polyester media and light frame. Low pressure drop and high fire resistance. Product Description STRUCTURE DESCRIPTION： Removable and firm frame design. The frame is made of from aluminum alloy sheet with ABS plastic or aluminum alloy corner connectors to ensure its rigidness under harsh working environment. The outer frame is removable and recyclable. The media is hold by rib supports for rigidness and uniform pleat shape. This ensures low pressure drop and high dust loading capacity. M-WASH is made of high quality polyester fiber which can be washed and reused for several times. It has a long service life as well as high dust loading efficiency and capacity. It can be used to prolong the service life of secondary or tertiary filters. To fit clients’ requirement, M-Wash comes with 10mm,1-inch thickness design (21mm & 23mm), 2-inches thickness design (46mm) and 4-inches thickness design (96mm). The 1-inch design is used in the panel structure while the 2-inches and 4-inches designs are used in the pleated structure. Continuous Operating Temperature : Max. 93°C Operating Relative Humidity : ≤100 (%RH) Media Material : Polyester Fiber Frame Material : Extruded Aluminium / Galvanised Steel / Stainless Steel Frame Thickness : 8mm, 10mm, 12mm, 21mm, 23mm, 46mm, 96mm Efficiency (EN779:2012) : G2, G3, G4 Dust Holding Capacity : High
