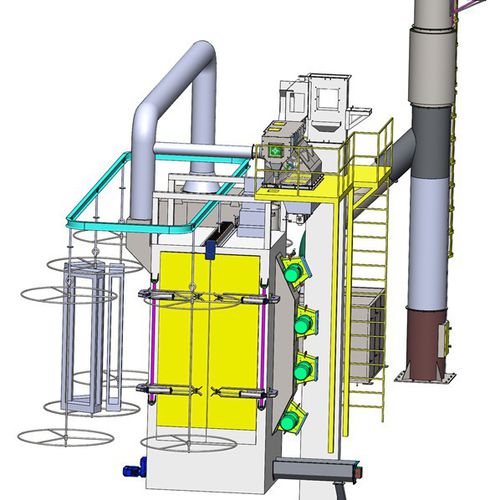

Overhead conveyor shot blasting machine MCT series

for metalsheet metalautomatic

Stepping Hanging Chain Shot Blasting Machine Stepping hanging chain shot blasting machines are used in many applications, such as de-scaling, de-sanding of forgings, castings, stamping parts and heat-treated parts, rust removal, sand removal of iron, steel and light metal castings, and also surface cleaning of liquefied gas tanks. It is especially suitable for work pieces of moderate size & weight in small range of diversity but large quantity, such as automobile & motorbike wheel hubs, gears, car frame, side frame of railway bolster etc. Brief Profile Stepping hanging chain shot blasting machines are specially designed for medium and small work piece, and large work pieces surface cleaning at high work piece throughput. It has double working stations or triple working stations in the blasting chamber. Work pieces can be loaded on the cross bars of a manual spinner hanger transport system before moving into the blasting chamber. The other spinner hangers are being loaded when one hanger of work pieces is in the process of blasting in the chamber. Flexible way and continuous blasting is time & cost effective. The single-strand closed-loop transport system can be customized according to the working site parameters with the optimum positions for loading and unloading places and have effective utilization of the workshop in the purpose of convenience and high efficiency for work.This is the best solution to have joint work of transporting and blasting and to be integrated with painting/oil injection line perfectly.
