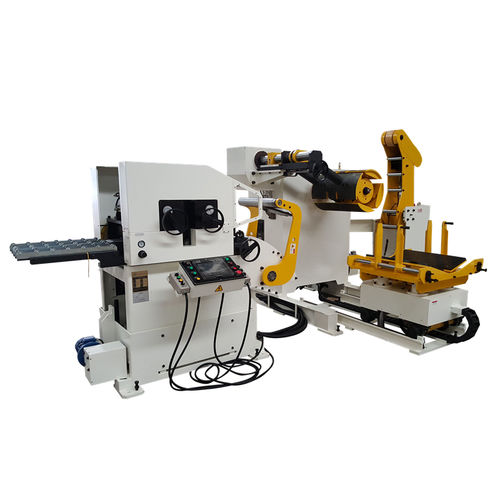

Decoiler-straightener-feeder MFL4 series

decoiler-straightener-feeder
decoiler-straightener-feeder
decoiler-straightener-feeder
decoiler-straightener-feeder
decoiler-straightener-feeder
decoiler-straightener-feeder
decoiler-straightener-feeder
Add to favorites
Compare this product


Description

Compact Coil Feed Line (0.6-6.0mm) Applicable Material Raw Material Type: Hot-Rolled Metal steel, Cold-Rolled Metal steel, Galvanized Metal steel ,Stainless Steel etc. Coil Width: 100-1600 mm Material Thickness: 0.6-6.0 mm Yield Strength: ≤245 N/mm2 Tensile Strength: ≤392 N/mm2 Brief Profile By combination of decoiler, straightener and feeder machine into one unit, so called compact coil feeding line, which is positioned directly at the press, the needed space for a material loop of straightened material can be saved.The straightener-feeder is supplied with material out of a very small loop of not straightened material below the decoiler. And the decoiler is equipped with a variable speed drive as well as with a very sensitive loop control. By this way it is assured that there always will be enough material available for supply of the straightener-feeder. In case that feeding lengths and stroke rates do require a bigger material stock within the material loop, the Compact Coil Feeding Line will be completed with a loop pit. With our Coil Processing Systems you can process coil material width from 400mm to 1600mm, coil thickness from 0.6-6.0mm, coil weight up to 20000kgs. Compact coil feeding line is design to make thick plate of auto parts stamping, such as brake pads, front pillar, Seat slide rail, center pillar, flip wheel and so on.

VIDEO
