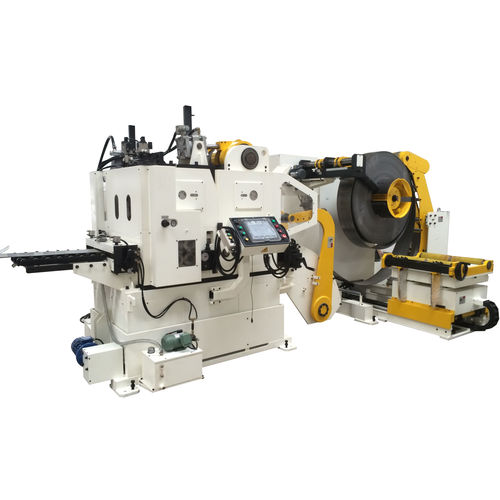

Fine blanking press feeding line MFL5 series
for the automotive industryfor high-strength steelcompact

fine blanking press feeding line
fine blanking press feeding line
fine blanking press feeding line
fine blanking press feeding line
fine blanking press feeding line
fine blanking press feeding line
fine blanking press feeding line
Add to favorites
Compare this product


Characteristics

Applications
for fine blanking, for the automotive industry, for high-strength steel
Other characteristics
compact, with straightening device, high thickness

Description

Press Feeding Line (0.8-9.0mm) Applicable Material Raw Material Type: High Strength Steel steel, Hot-Rolled Metal steel, Cold-Rolled Metal steel, Galvanized Metal steel ,Stainless Steel etc. Coil Width: 100-1800 mm Material Thickness: 0.8-9.0 mm Max. loading weight: 25ton Yield Strength: ≤613 N/mm2 Tensile Strength: ≤980 N/mm2 Brief Profile Press Feeding Line in the short space design is especially developed to meet the needs of customers with not enough space. They offer process reliability even for the most demanding materials. They are optimally suited for the manufacture of structural parts as well as for processing of high-strength materials – even for the higher ranges of strip thickness. The principles of decoiler straightener feeder is that the motorized Decoiler (Coil Reel) with drive continually moves the strip into a bottom coil loop supplying the Straightener-feeder,and then feed the coils strips into the power press machine as well. Mayflay MFL5 series press feeding line can handle material strips up to 2000 mm stock width and approx. 9mm thickness, coil loading up to 25tons. Decoiler straightener feeder machine press feeding line is widely used in auto parts industry, hardware stamping industry, home appliance industry, electric appliance industry and etc.
