Press decoiler-straightener GL-H series
sheet metalfor plasma cutting machines

press decoiler-straightener
press decoiler-straightener
press decoiler-straightener
press decoiler-straightener
press decoiler-straightener
press decoiler-straightener
Add to favorites
Compare this product


Characteristics

Applications
for presses, sheet metal, for plasma cutting machines

Description

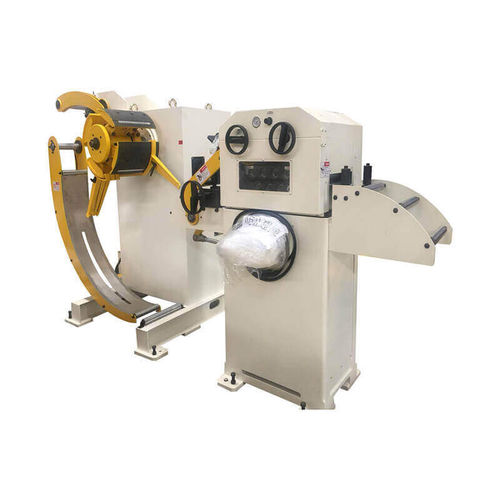

Hydraulic Decoiler Straightener (0.5-4.5mm) Applicable Material Raw Material Type: Hot-Rolled Metal steel, Cold-Rolled Metal steel, Galvanized Metal steel ,Stainless Steel etc. Coil Width: 100-600 mm Material Thickness: 0.5-4.5 mm Coil Weight: 3000kgs Inner Diameter: 450-530mm Outer Diameter: 1200mm Speed: 16m/min Brief Profile Hydraulic Decoiler straightener machine is in the short space design were designed to meet the needs of customers with limit space. It’s smart and easy to move and install it. Hydraulic Decoiler Straightener assembly decoiler and straightener machine 2 in 1 ,It could effectively save the installation space,reduce precision material transition segment in the process of straightening,then could maximize develop of the machine performance. It can uncoiling and straightening the metal sheet coil from width 100-800mm, and thickness from 0.5-4.5mm, coil weight from 1000kgs to 3000kgs. It’s suitable for hardware stamping, electrical products, computer shell and so on. With pneumatic pressure on upper and lower straightener roller distance adjusting and worm gear adjusting, it can achieve precision straightening performance for many different kind of metal sheet material.
