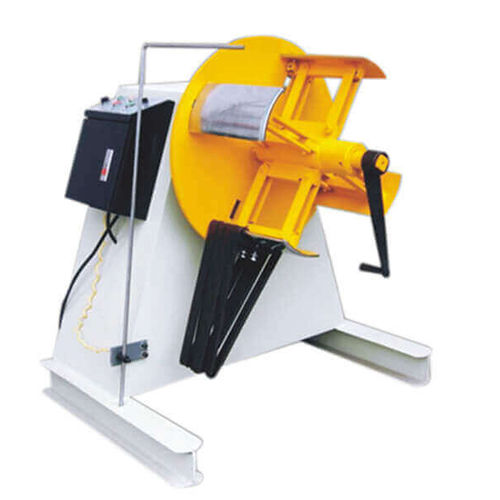

Motorized decoiler MT series
manualfor press feed

motorized decoiler
motorized decoiler
motorized decoiler
motorized decoiler
motorized decoiler
motorized decoiler
Add to favorites
Compare this product


Characteristics

Operation
motorized, manual
Applications
for press feed

Description

Decoiler Machine Model No.: MT Applications: Pressing Line/Metal Stamping Line/Forming Line Applicable Coil Width: 20mm-1300mm Applicable Coil Thickness: 0.3-3.5mm Coil Inner Diameter: 450-530mm Coil Outer Diameter: 1200mm Speed: 15m/min Breif Profile Motorized Manual decoiler is design for the low weight metal coils uncoiling, it’s located at the beginning of a process line used to hold and safely pay off or uncoil the steel strip, usually configured with the sheet metal straightener, NC servo feeder machine and power press machine. Motorized Manual decoiler can uncoiler the coil strip from 70mm to 800mm width, from 0.2mm to 6mm thickness and load the weight up to 2tons. Usually it’s suible for the inner diameter 450-530mm, and outer diameter 1200mm. What's more, if the thickness over the 3mm thickness, we suggest add the pressure arm to avoid injury the operator due to the excessive flexibility of materials.
