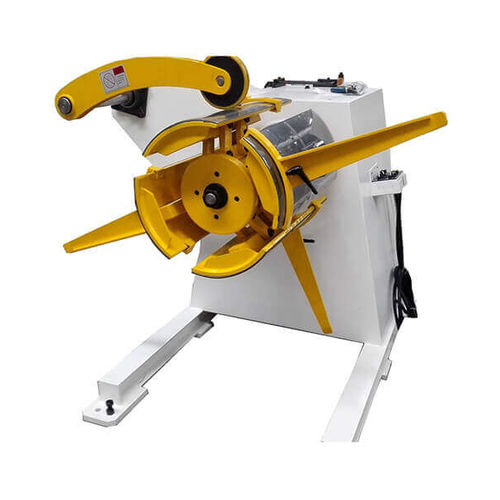

Hydraulic decoiler MT series
for sheet metal

hydraulic decoiler
hydraulic decoiler
hydraulic decoiler
hydraulic decoiler
hydraulic decoiler
hydraulic decoiler
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Applications
for sheet metal
Maximum load

Max.: 10,000 kg
(22,046 lb)

Min.: 500 kg
(1,102 lb)

Description

Hydraulic Decoiler Machine Model No.: MT Applications: Pressing Line/Metal Stamping Line/Forming Line Applicable Coil Width: 200mm-1500mm Applicable Coil Thickness: 0.3-3.5mm Coil Inner Diameter: 450-530mm Coil Outer Diameter: 1600mm Max. weight: 10tons Speed: 15m/min Brief Profile Hydraulic heavy duty decoiler machines are used to facilitate the work of operator and facilitate the inner tightening process, for higher weight rolled sheet metal that can not be done used using manual tightening system. When the hydraulic roll decoiler is used, the process of loading the roll onto the decoiler will be facilitated and speeded up. Using a hydraulic loading car will further facilitate the loading process and shorten the time as well. Application Working Width Capacity : 200-1500 mm Coil Carrying Capacity :500kgs-10000kgs Coil Inner Diameter Clamping Capacity : 460-520 mm Coil Outside Diameter Working Capacity : 1400-1600 mm Coil Inner Pressure Function : Hydraulic Mandrel Machine Working Movement : Left to Right or Right to Left Inverter Motor with Speed Control Pressure Arm and Coil Car is optional Hydraulic heavy duty decoiler machine is the improtant equipment in steel metal production line, Used in roll forming production line and cutting to length line, mainly used to hold steel strip to make coils unfold,supplying raw material for the production line.
