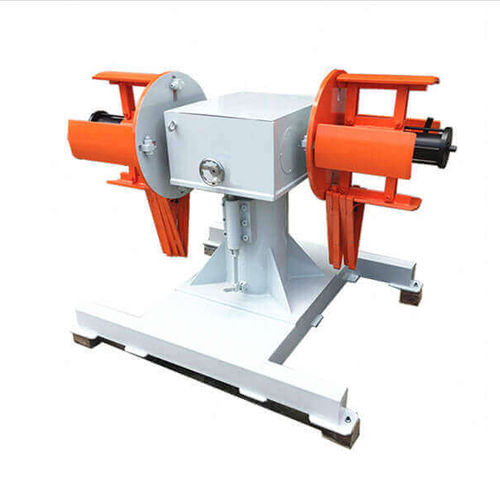

Manual decoiler DBMT series
for press feeddouble

manual decoiler
manual decoiler
manual decoiler
manual decoiler
Add to favorites
Compare this product


Characteristics

Operation
manual
Applications
for press feed
Other characteristics
double
Maximum load

1,000 kg, 2,000 kg
(2,205 lb, 4,409 lb)

Description

Double Head Decoiler Machine Model No.: DBMT Applications: Pressing Line/Metal Stamping Line/Forming Line Applicable Coil Width: 20mm-300mm Applicable Coil Thickness: 0.3-3.5mm Coil Inner Diameter: 450-530mm Coil Outer Diameter: 1200mm Speed: 15m/min Brief Profile Aiming to reduce the time to load a roll to the minimum point, this double head decoiler type drives one of the rolls, as the other one waits as a backup. When the driven roll is over, the backup roll will be ready to be connected to the driver within a very short period of time. When you connect the new roll to the driver, you will have a long time to load another spare roll. Double head decoiler is an ideal solution for production plants where production speed and continuity are crucial in serial manufacturing. So usually configured with the S loop straightener, high speed gear machine and H frame high speed press machine, it’s usually suitable for motor rotor and stator lamination stamping. Application Model No.: DBMT Applications: Pressing Line/Metal Stamping Line/Forming Line Applicable Coil Width: 20mm-300mm Applicable Coil Thickness: 0.3-3.5mm Coil Inner Diameter: 450-530mm Coil Outer Diameter: 1200mm Speed: 15m/min Mandrel Expansion: Manual Application: Uncoiling the coils Ideal for high speed lamination stamping line
