Process tank VBM SERIES

heatingchocolate meltingstainless steel

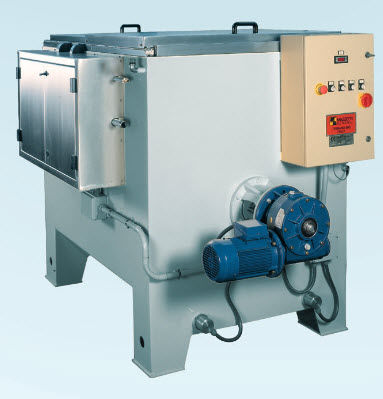

The Melting tanks series VBM 400-800- 1200 are machines specially designed to quickly melt products such as cocoa butter, cocoa blocks and fat materials. The machine is composed by a double interspace tank, with a bain-marie heating system and machine parts made from AISI 304 stainless steel. Inside the tank there is a melting coil, where the product to melt must be placed by hand. The tank and coil have their own stand-alone heating and thermostat system (electric resistances controlled by thermoregulators). The models VBM 800-1200 are equipped with blade stirrers, controlled by gearmotors to keep the melted product in motion. The product can be discharged from the machine by an outlet valve, or alternatively, by the product outlet pump.
