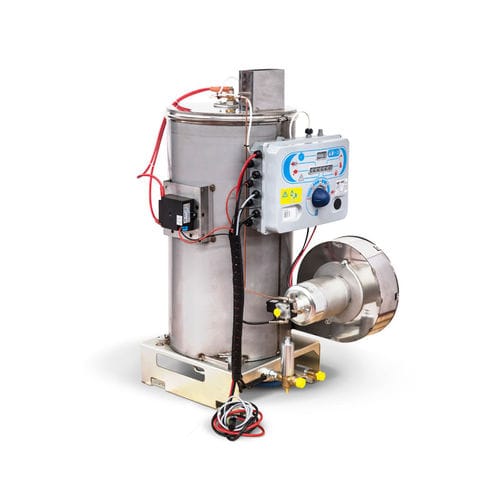

Hot water boiler

fuel oilverticallow-emission

In boilers Mazzoni the coil has a thickness and a length designed to allow the maximum efficiency in terms of heating of the water, minimizing the fuel consumption and maximizing the resistance. The casing and the burner group are in stainless steel, a bottom insulates the combustion chamber from the outside of the boiler, making it safe and reliable. DIESEL BOILER 15-20-25-30 L Structure made of stainless steel The bottom of boiler is made from compressed fired ceramic fiber FLAME GROUP Diesel nozzle Ignition electrodes Copper diesel pipe Support for flame control DIESEL PUMP Solenoid valve TRANSFORMER 2X5000V complete with cables connection (400V) 2X14000V complete with cables connection (220V) MOTOR FAN Aluminium IP 44, 230-400V, 50-60Hz, 2800-3200 RPM Electrical box complete with: Frame control Flow switch Level switch Thermostat Pressure switch Contactor Hour counter display and LED lights alert the safety valve (500 bar optional)
