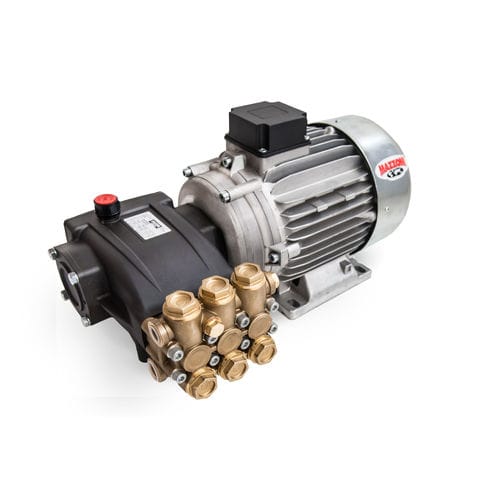

Pump with electric motor 3.071.02.014
waternormal primingstationary

Pump with electric motor - 3.071.02.014 - MAZZONI - water / normal priming / stationary
Pump with electric motor - 3.071.02.014 - MAZZONI - water / normal priming / stationary
Pump with electric motor - 3.071.02.014 - MAZZONI - water / normal priming / stationary - image - 2
Pump with electric motor - 3.071.02.014 - MAZZONI - water / normal priming / stationary - image - 3
Add to favorites
Compare this product


Characteristics

Fluid
water
Operation
with electric motor
Priming
normal priming
Mobility
stationary
Domain
industrial
Applications
high-pressure
Other characteristics
high-efficiency
Flow

Max.: 43 l/min
(11.3594 us gal/min)

Min.: 10 l/min
(2.64172 us gal/min)

Pressure

150 bar, 170 bar, 200 bar, 240 bar, 500 bar
(2,175.566 psi, 2,465.642 psi, 2,900.755 psi, 3,480.906 psi, 7,251.887 psi)

Power

Max.: 22 kW
(29.91 hp)

Min.: 2.2 kW
(2.99 hp)

Weight

45 kg
(99.21 lb)

Description

Electric motors, motor pumps and high pressure pumps take part from the wide range of products made by Mazzoni srl. Made from robust and high-quality materials , electric motors, efficiency class IE2 and IE3 have a high power and efficiency.
