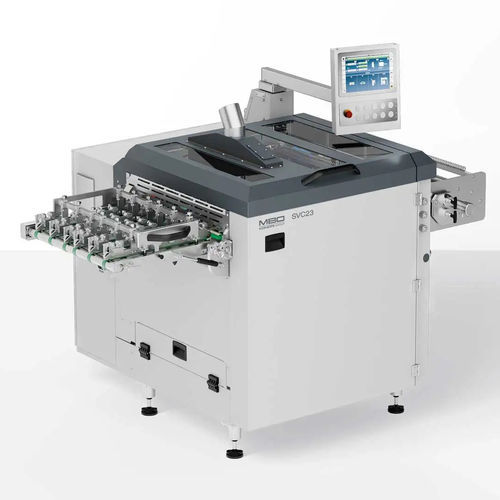

Paper sheeter SVC series

digital

The MBO SVC sheeter is variable and fully electronically adjustable in terms of format and cut-out size. Thanks to its solid industrial construction, the SVC series is designed for the highest customer requirements and maximum running performance - even in continuous operation. Thanks to the high level of automation and minimal set-up time, the SVC series is also ideally suited for shorter runs. Processing of web widths from 150 mm to max. 585 mm. Papers from 40 g/m² to 250 g/m² can be processed. A paper roll can be cut with or without chip-out. The roll can be cut continuously with chip-out to a sheet length of 150 mm to max. 2.032 mm. Without chip-out, it can be cut from 100 mm – 2.032 mm. The width of the chip-out can be adjusted without tools between 6 mm and max. 50 mm. Fully automated changeover of format and cut-out. Self-learning function (auto teach function). M1 machine control with touch screen with intuitive operator guidance. External length cut cassette, i.e.: for edge trim or optional gutter cut Slitter shaft cassette for easy exchange of slitter shafts Max. 250 m/min
