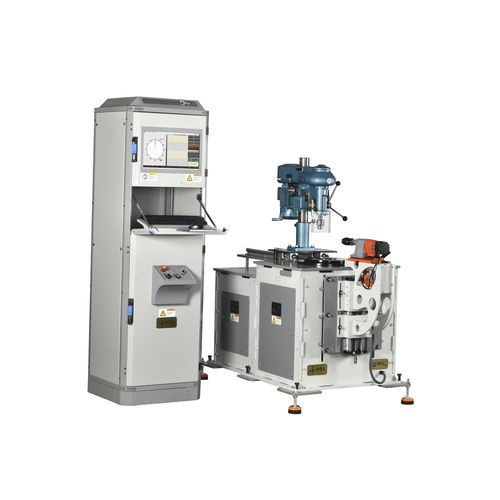

Vertical balancing machine V-IVB 100

dynamicelectromechanicalfor fans

Vertical Balancing Machine V-IVB 100 Vertical Balancing Machine is a manual loading machine which is used for balancing of workpieces such as flywheels, brake discs, pulleys, gears, brake, clutch pressure plate, fan, pump and so on. While choosing the apparatus to connect the workpiece to the machine (mirror-dart etc.), it shold be noted if its use is practical and quick and most importantly sensitive. Whatever the case, all of our machines has automatic camshaft adjustment system. Balancing program works with the licensed Windows operating system. Is easy for operator use. Operator can calculate the tolerances according to ISO 1940 before begining the balancing process by entering the dimension and the weight of workpiece. Training and installation process of the machines which are given by our staff are finalized with the submission of a certificate. Machine calibration is made in our company and calibration certificate is provided together with the machine. All our machines have CE certificate. Drill or milling unit can be added into the equipment in acoordance with the workpiece to be balanced.
